Setup

Follow steps to setup PPTP VPN for your Ubuntu.

How to setup L2TP VPN in Ubuntu Linux

Setting up VPN access under Ubuntu 16.04 and later. The following instructions go step-by-step through the creation process.

Step 1.

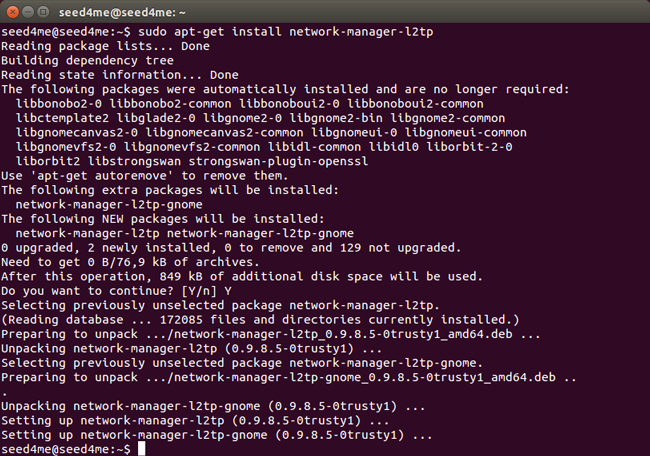

Install required packages from the Terminal

sudo add-apt-repository ppa:nm-l2tp/network-manager-l2tp
sudo apt update
sudo apt install network-manager-l2tp network-manager-l2tp-gnome

How to setup L2TP VPN on Ubuntu - Step 1

Step 2.

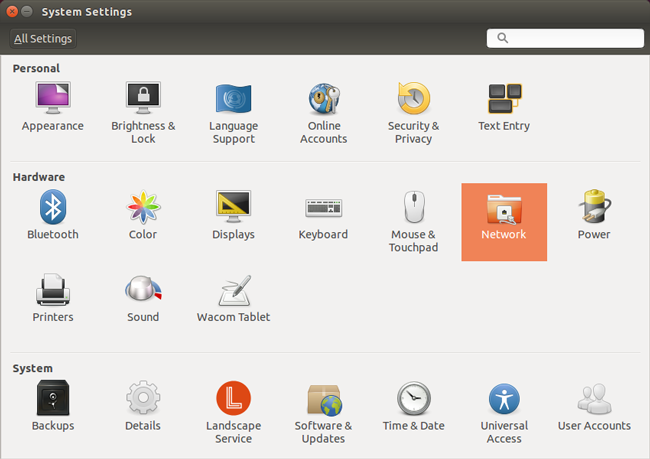

Open System Settings and press the Network icon.

How to setup L2TP VPN on Ubuntu - Step 2

Step 3.

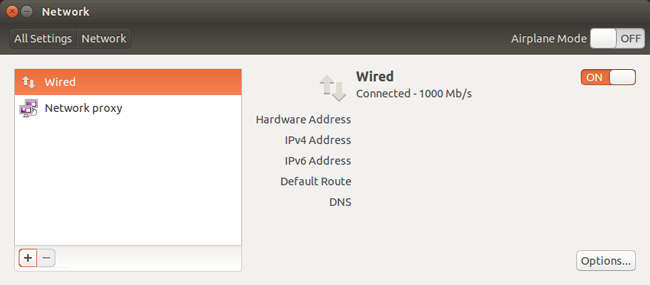

In the Network window there is a list of network connections on the left side.

Click on the "+" icon to make a new connection for the VPN.

How to setup L2TP VPN on Ubuntu - Step 3

Step 4.

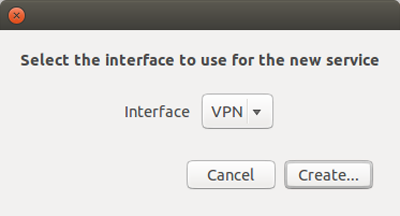

When you click the "+" icon, a new service sheet appears.

Choose VPN interface and press Create... button.

How to setup L2TP VPN on Ubuntu - Step 4

Step 5.

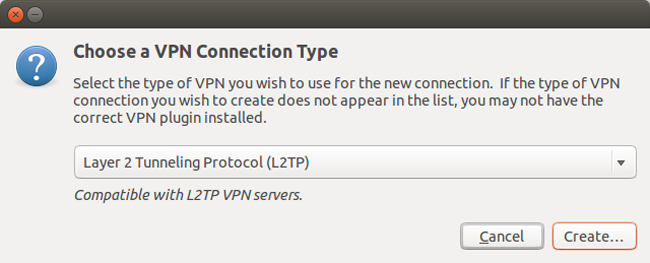

In the next service sheet choose a VPN connection type: Layer 2 Tunneling Protocol (L2TP).

How to setup L2TP VPN on Ubuntu - Step 5

Step 6.

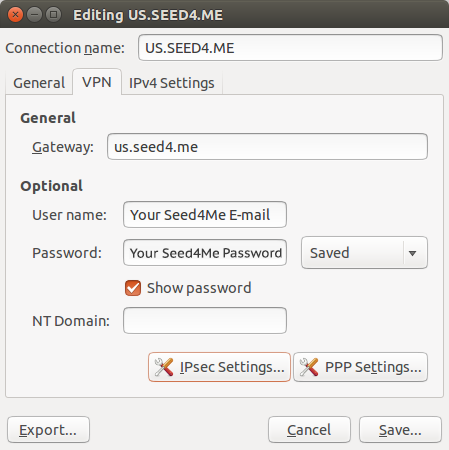

In the opened window Type Connection Name: US.S4M.XYZ - could be any name, it's up to you.

Gateway: us.s4m.xyz - the list of ALL available servers you can find at My VPN Access page

User name: Your Seed4.Me E-mail

Password: Your Seed4.Me Password

How to setup L2TP VPN on Ubuntu - Step 6

Step 7.

Click on the IPsec Settings... button. A new sheet pop up.

Mark on Enable IPsec tunnel to L2TP host checkbox and type Pre-shared key: seed4me.

How to setup L2TP VPN on Ubuntu - Step 7

Click OK and then Save...

Now Press the OFF button to turn ON the VPN.

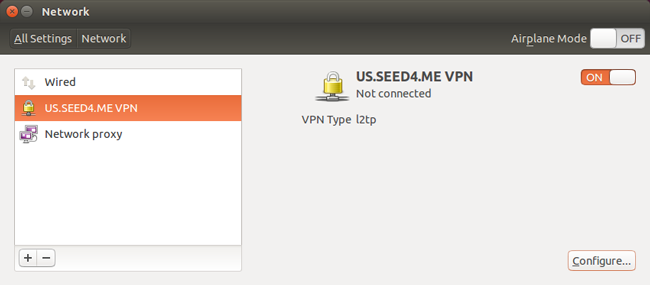

When you want to connect to the VPN, you can choose the VPN connection either in the Network connection list or from the Network connections at the Menu bar.

How to setup L2TP VPN on Ubuntu - Step 8

You are now done with your setup!
